Graphite electrode for electric arc furnace

Group Refractory Anchor
Min. Order 100 kilogram
Terms of Payment L/C, T/T
Update Time 2018-01-22
Item specifics
Diameter50-600mm
Resistance(μΩ.m): 8.0-8.5μΩ.m
Length1800-2700mm
Apparent Density (g/cm³ )1.70 - 1.85 g/cc
Ash (purified)30 - 50 ppm
GradeSHP (Super High Power )
Thermal Expansion1.5 - 2.8 X10-6 / (100-600 )
Bending strength15 - 40MPa
Maximum Grain Size44 micron or customized
Description

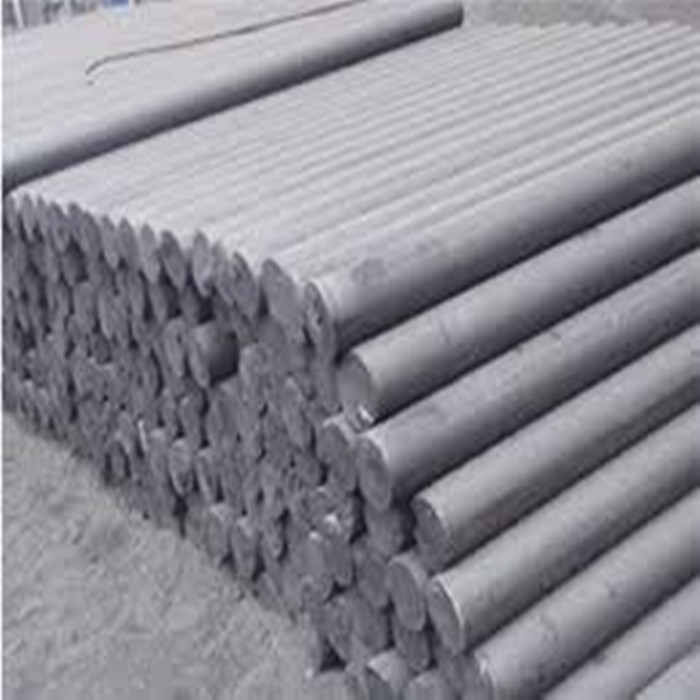

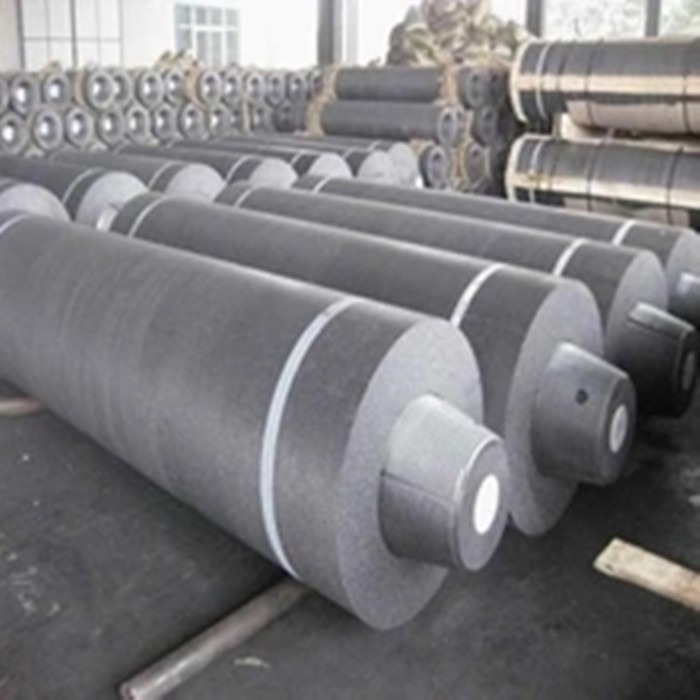

graphite electrode for electric arc furnace



1. Grade: RP, HP, SHP, UHP
2. Diameter: 50~ 600 mm
3. Length: according to clients' required



Graphite electrode is made of high-quality low ash materials,such as petroleum coke,needle coke and coal pitch.After calcining,burdening,kneading,forming,baking and pressure impregnation,graphitization and then precision machined with professional CNC machining.Such of the products own characteristics with low resistivity,good electrical conductivity,low ash,compact structure,good antioxidation and high mechanical strength,so it is the best conductive material for electric arc furnace and smelting furnace.


Specification:

ITEM

UNIT

RP

HD

HP

UHP

≤400

≥500

≤400

≥500

≤400

≥500

≤400

≥500

RESISTIVITY

ELECTRODE

μΩ·m

7.0~8.5

7.5~8.8

6.0~6.8

6.2~7.0

5.5~6.5

5.8~6.5

4.5~6.0

4.5~6.0

NIPPLE

4.2~5.2

3.8~5.0

3.5~4.5

3.2~4.0

BENDING STRENGTHS

ELECTRODE

Mpa

8.5~9.5

8.0~8.5

10.5~13

10.5~13

11.5~14

11~14

12~15

12~15

NIPPLE

17~22

18~23

20~25

21~28

ELASTIC MODULUS

ELECTRODE

Gpa

8.0~9.3

10~12

9~12

9~14

NIPPLE

10~14

10~16

10~16

10~18

ASH

ELECTRODE

%

0.4

0.3

0.2

0.2

NIPPLE

BLUD DENSITY

ELECTRODE

g/cm3

1.54~1.61

1.64~1.71

1.65~1.72

1.66~1.73

NIPPLE

1.72~1.77

1.74~1.78

1.75~1.80

1.77~1.82

C·T·E

(100~600°C)

ELECTRODE

10-6/

°C

2.1~2.4

2.0~2.3

1.6~1.8

1.0~1.4

NIPPLE

2.0~2.3

1.8~2.0

1.4~1.6

0.9~1.3
