Micro Stainless Steel Fiber For Concrete Reinforcement
Micro Stainless Steel Fiber For Concrete Reinforcement
Micro Stainless Steel Fiber For Concrete Reinforcement
Micro Stainless Steel Fiber For Concrete Reinforcement
Micro Stainless Steel Fiber For Concrete Reinforcement
Micro Stainless Steel Fiber For Concrete Reinforcement
Model
W-LCS/15/30ST

Item specifics

Material
Stainless Steel
Standard
ASTM A820
Tensile strength
750 - 1250Mpa
Length
15mm
Cross section
Circular
Aspect ratio
50
Diameter
0.3mm
Shape
Straight
Color
Metalic-grey

Review

Description

1. Type: W-LCS/50/50HE

2. Materials: Low Carbon Steel

3. Grade: Low Carbon

4. Standard: ASTM A820


Low Carbon Steel

Chemical Analysis (%)

C≤

Si≤

Mn≤

P≤

S≤

Cr≤

Ni≤

Grade

L.C.

0.12

0.3

0.5

0.045

0.050

0.3

0.3

Length (mm)



Diameter(mm)



Aspect Ratio



Shape

Tensile Strength(Mpa)







No/kg (approx.)



6

0.3

20

Straight



750

|

3000

299900

15

0.3

50


Straight

Hooked Ends

Ripple

W12

120000

20

0.4

50

50600

20

0.5

40

32400

25

0.4

62.5

40500

25

0.5

50

25900

30

0.4

75

33700

30

0.5

60

21600


Applications:

HARVEST Waved Steel Fiber for reinforcement concrete, such as :

  1. Industry Flooring, Nuclear power plant, Reservoir, Spaceport, ;

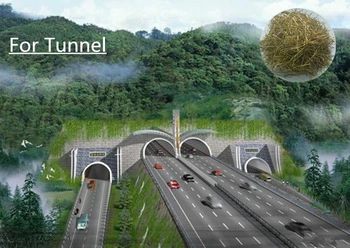

  2. Tunnel, Bridge, Highway, Concrete culvert, Storm Sewer, Sanitary Sewer, Dam, ;
  3. Precast Concrete: Culvert pipe, Manhole cover and frame, Concrete bridge pier,;
  4. Building, School, Hospital, Bank, Jail,  ;
  5. Other concrete structures.

Using method & Using quantity:
HARVEST Waved Steel Fiber for Reinforcement Concrete,

The mixing ratio of steel fiber with concrete matrix is about 1-5% by weight.

Health & Safety:
HARVEST Waved Steel Fiber for Reinforcement Concrete,

USING STEEL FIBRES UNDER NORMAL CONDITIONS DOES NOT PRESENT AN INHALATION, INGESTION OR CONTACT HEALTH HAZARD.

BECAUSE OF THEIR PHYSICAL NATURE, WE RECOMMEND THAT OPERATIVES HANDLING THE FIBRES SHOULD ALWAYS WEAR GLOVES.

TO AVOID DETERIORATION OF PACKING, THE FIBRES SHOULD BE STORED IN A DRY ENVIRONMENT.
